Mikron Multistar CX-24

For maximum productivity and versatility

What makes the Mikron Multistar CX-24 rotary transfer machine so special? Its unbeatable precise performance and speed.

The Mikron Multistar CX-24 rotary transfer machine stands out through its unmatched precision, speed, and adaptability. Engineered for high volume production and performance machining, it’s the go-to transfer machine for manufacturers across sectors like automotive, electrical, medical, gas, and watchmaking.

Why Choose the Mikron Multistar CX-24 Rotary Transfer Machine?

The Multistar CX-24 is specifically designed for high-performance rotary transfer machining of complex part families and demanding workpieces. Whether your application requires serial production or the flexibility to machine small part batches, this rotary transfer system delivers efficiency without compromise.

The Mikron Multistar CX-24 is precise, fast, versatile and customizable – simply a top performer!

Benefits at a glance

  • Precise serial production of part families and demanding workpieces
  • Table index repeatability of ± 2.5 µm
  • 24 stations with up to 44 machining units for very high output rates
  • Ideal for high volume production with fast cycle times

Key Features for optimal performance machining

Flexible and Precise Spindle Control

  • Precise spindle control through through quick-changing linear curves
    (high machining flexibility)
  • Highly productive and economical, even with low quantities as low as a few thousand workpieces per part variation,
  • Flawless machining quality, even over extended use.
  • 24 intermediate stations allow for measuring, controlling, and cleaning procedures

Two Types: Monoblock or Adjustable

Mikron Multistar CX-24 comes in two types:

Monoblock – for centric operations
Adjustable – ideal for off-center and sloping operations

  • Adjustable stations allow part rotation and clamping of different shapes and diameters
  • Enhanced flexibility for complex transfer machining requirements

Exceptional cinematic system for optimal production

The Mikron Multistar CX-24 rotary transfer machine uses an exclusive cinematic system for driving up to 48 machining units.

  • Supports vertical and horizontal machining
  • Integrated loading/unloading processes
  • Boosts productivity in high volume production machining

Independent Linear Curves for Efficient Production

  • Each unit’s tool feed rate can be independently set for optimal surface quality
  • Facilitates rapid switching between parts within the same family
  • Extends tool life and enhances surface finishes

Exclusive Clamping System for Versatile Production

Mikron Multistar is the only machining system that can be equipped with up to 48 clamping collets:

  • 24 main and 24 auxiliary collets
  • Enables turning and clamping on multiple sides of the workpiece
  • Perfect for complex parts requiring multiple operations during rotary transfer machining

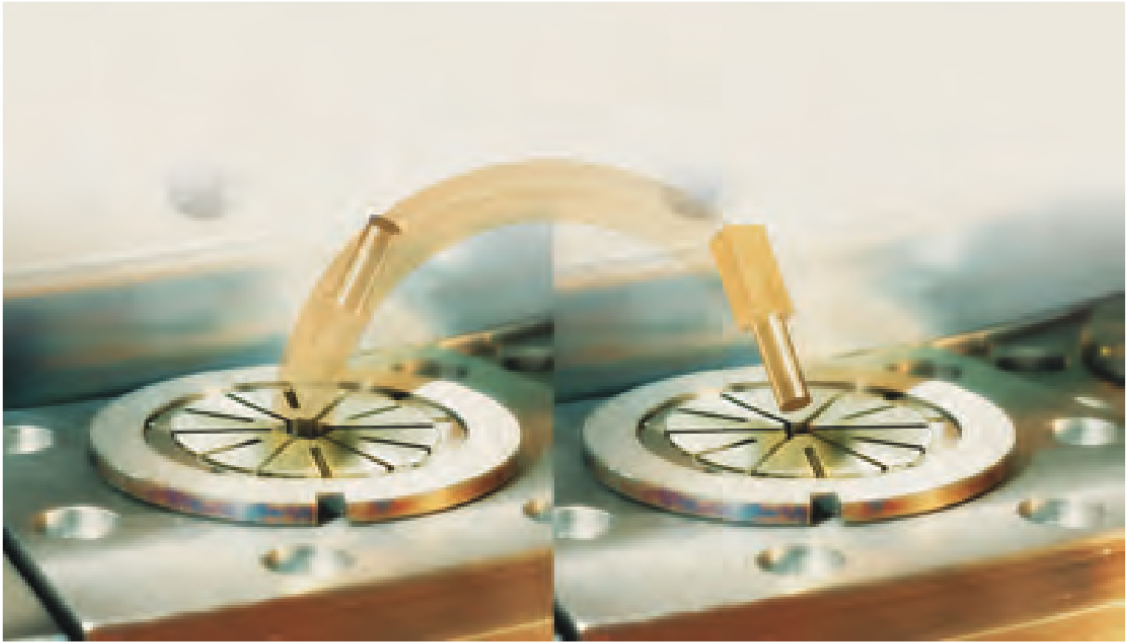

Example: A blank can be fixed in one collet with a square section for turning, then turned over and fixed in another collet with a round section for machining the other side.

Part turn-over in different section collet

Part turn-over in different section collet



Explore the power of the Multistar CX-24: Connect with our experts

Unlock new levels of production efficiency with this leading-edge rotary transfer machine.

Connect with our experts to discover how the Multistar CX-24 can transform your high volume production machining setup.

Video and typical applications
